7 Inch Meji lẹnsi Pipin Wo digi Monitor System

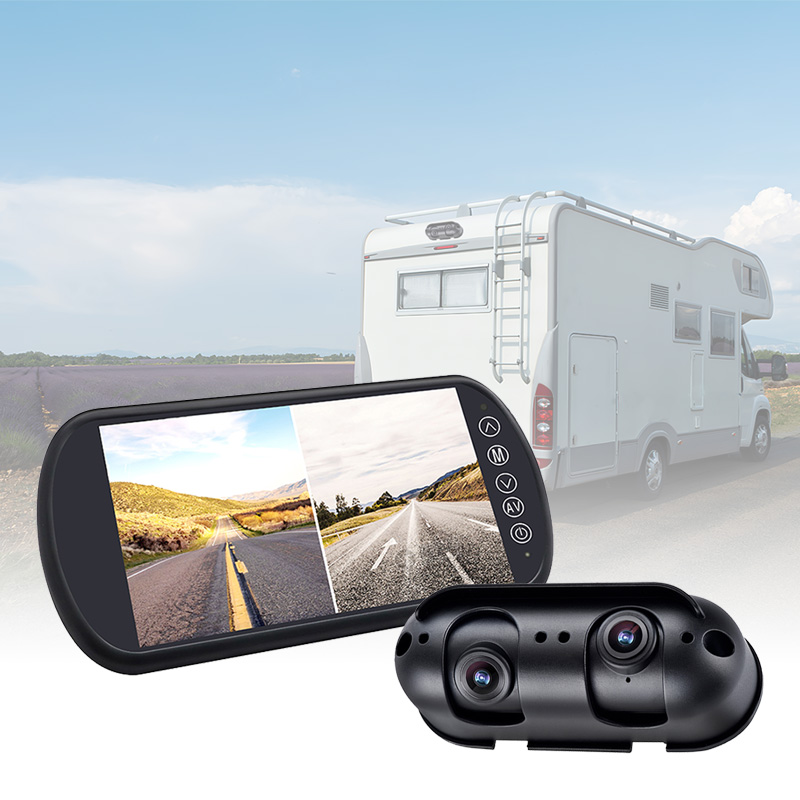

Carleader 7 Inch Dual Lens Split View Mirror System System, gbogbo ṣeto ti 1x 7 Inch meji pipin ṣe afihan atẹle wiwo digi ẹhin ati awọn kamẹra lẹnsi meji 1x, pipe fun eto iran ọkọ.

Parameter:

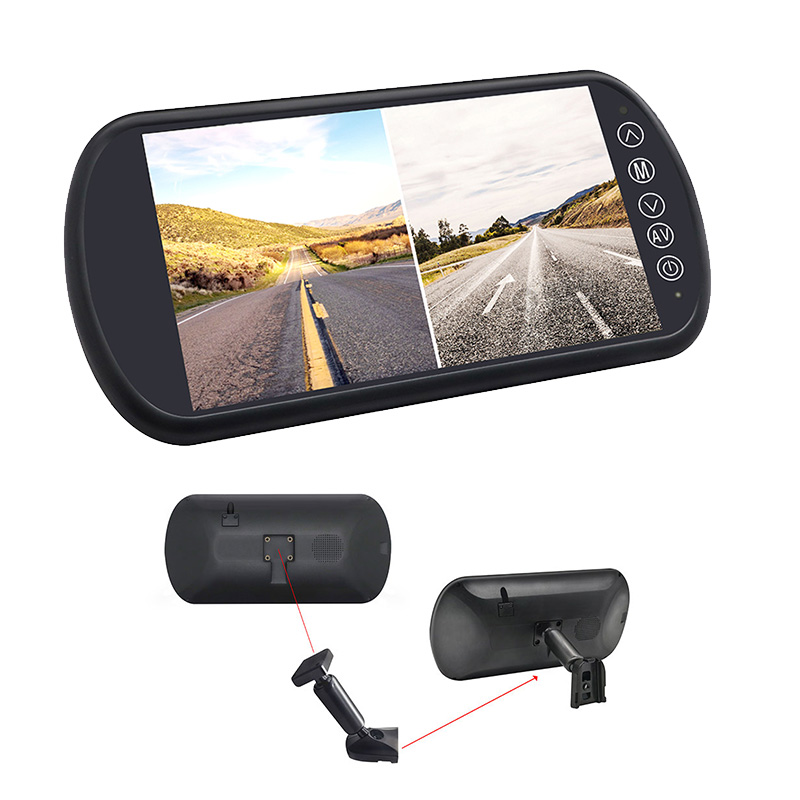

Atẹle digi:

* 7 "Atẹle digi ọkọ ayọkẹlẹ (AHD)

* 7 "giga oni-nọmba tuntun nronu, 16: 9 aworan

* PAL / NTSC eto

* Ipinnu: 1024 x RGB x 600

* 2 fidio 4 pin asopo awọn igbewọle

* Imọlẹ: 450 cd/m2

* Iyatọ: 500: 1

* Wo igun: L/R: 70, UP: 50, isalẹ: 70 ìyí

* Awọn ede pupọ OSD, iṣakoso latọna jijin

* Pẹlu awọn onirin okunfa 2, pataki okunfa: AHD2

* Ipese agbara: DC 9 ~ 32 V

* Iṣẹ bọtini ifọwọkan

* Fifi sori: lo akọmọ pataki lati ropo digi atilẹba (aṣayan akọmọ ẹsẹ àìpẹ duro)

* Iwọn: 24.5x10.5x2.5CM

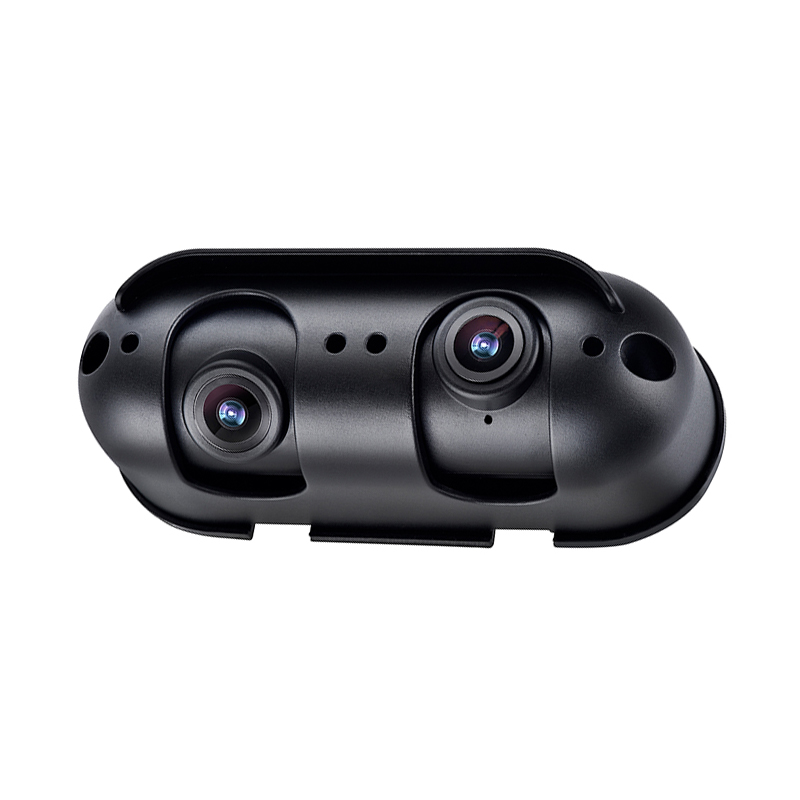

Kamẹra Lẹnsi Meji:

Awọn sensọ aworan: 1/2.1

Ipese agbara: DC12V (boṣewa). 24V (aṣayan)

Iṣawọle fidio: CVBS/AHD720P/AHD1080P iyan

Aworan digi & aworan ti kii ṣe digi (aṣayan)

Itanna Itanna: 1/65 (NTSC) / 1/60 (PAL) - 1/10,000

Lux: 0 LUX (Ko si LED IR)

Ìran Ìràwọ̀ Alẹ́ (Àwòrán àwọ̀)

Lẹnsi: 2.1mm

Ìpín S/N:≥50dB

Eto: PAL/NTSC iyan

Wo Igun: 90° & 135° (aiyipada)

Igun lẹnsi le ṣe atunṣe lọtọ

Ijade fidio: 1.0vp-p, 750hm

Ohun elo Ile: Aluminiomu Alloy

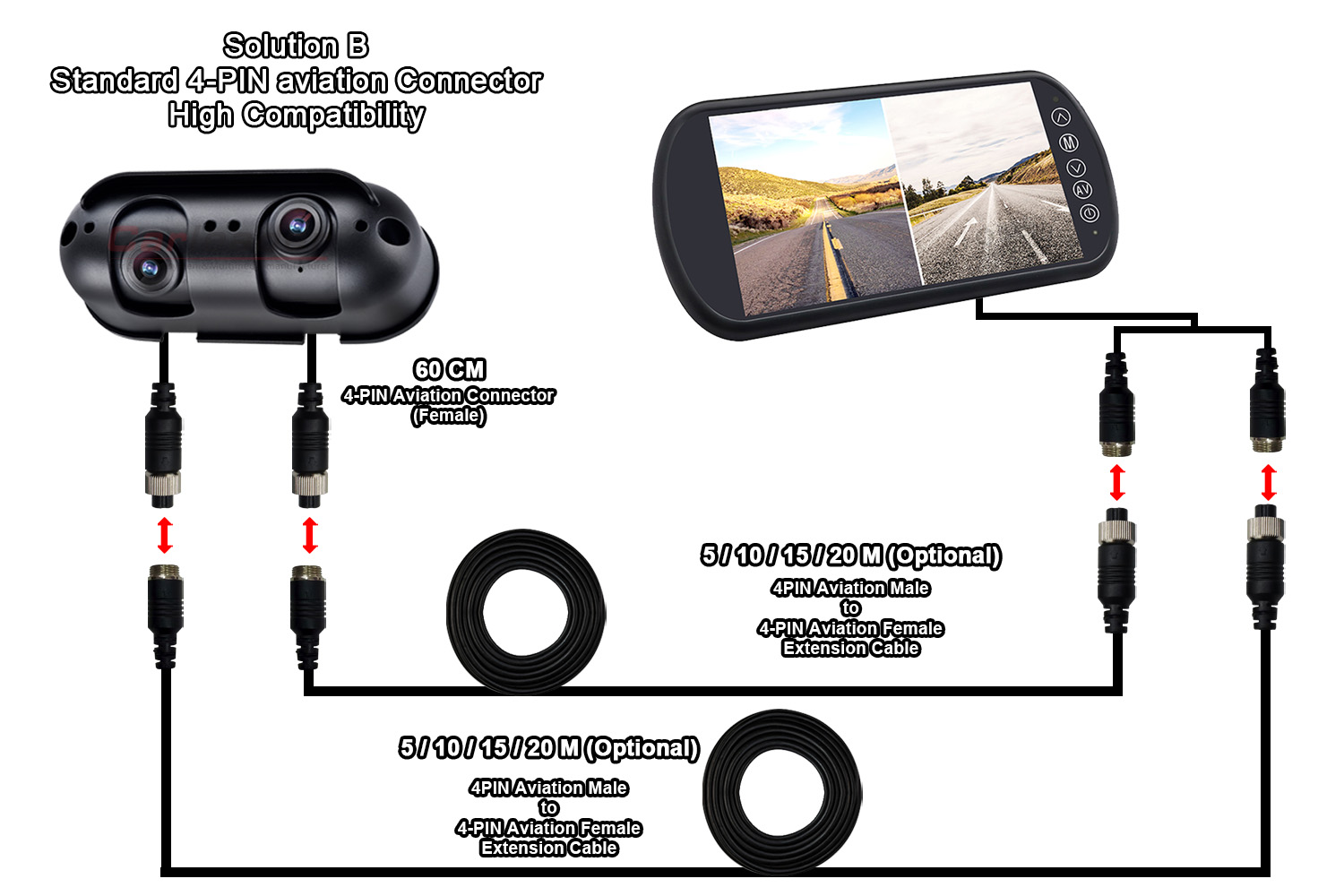

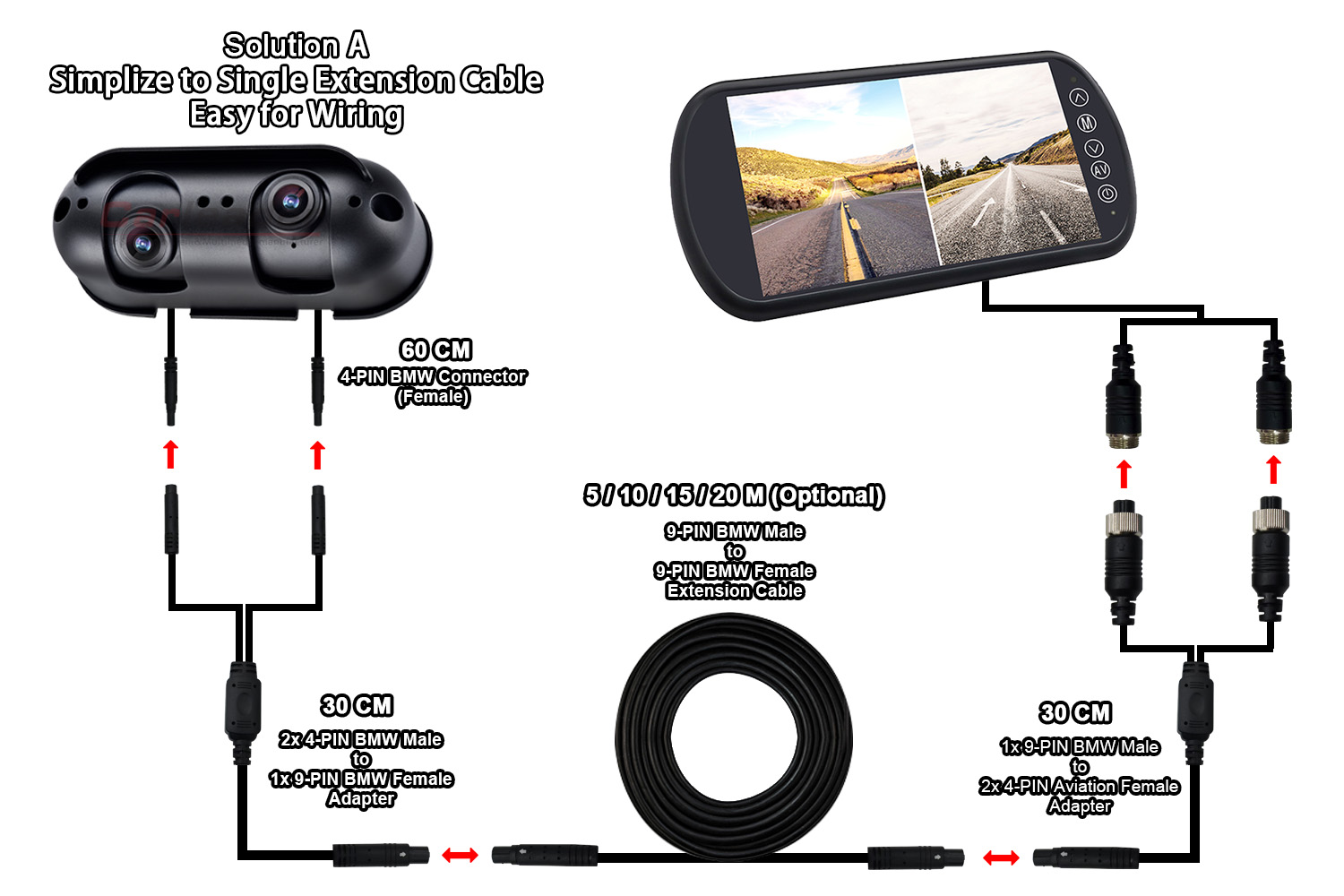

Asopọ kamẹra: ojutu onirin meji fun aṣayan.

Awọ: Dudu (aiyipada), funfun (Aṣayan)

Iwọn IP: IP69K

Iwọn otutu ti nṣiṣẹ (Iwọn C):-20~+75(RH95% Max.)

Iwọn otutu Ibi ipamọ (Iwọn C):-30~+85(RH95% Max.)
