7 inch AI BSD Afọju Aami Wiwa Eto Abojuto Eto Atilẹyin AI odiwọn

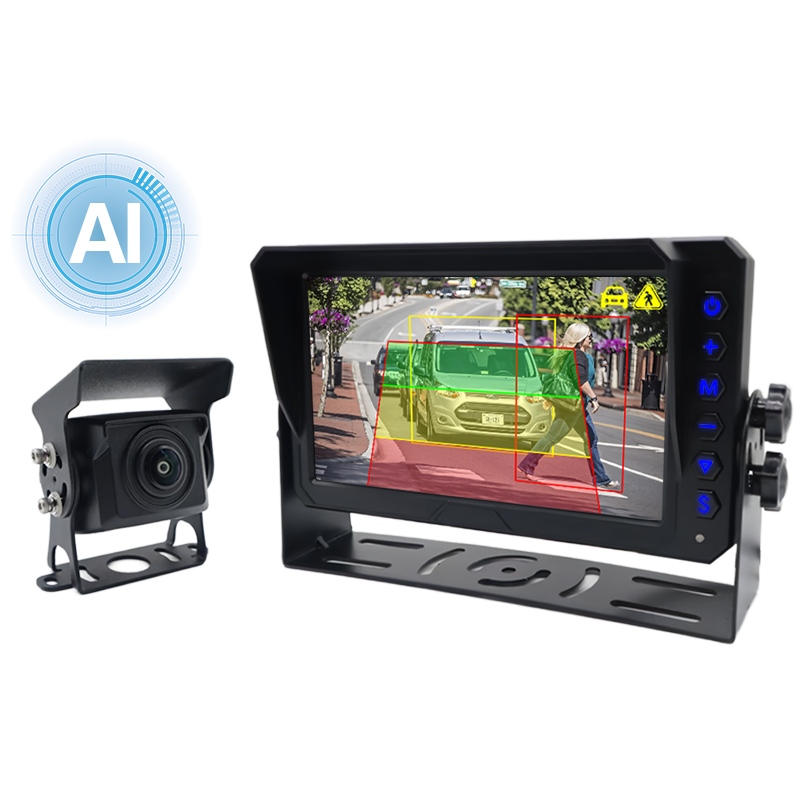

Carleader 7 Inch AI BSD Ifoju Iwari Abojuto Eto Abojuto Imudani AI jẹ ojuutu ailewu inu-ọkọ ti o ṣepọ oye itetisi atọwọda, ibojuwo akoko gidi ati agbara ipele ile-iṣẹ.
Awoṣe:CL-S791AHD-AICAM
Fi ibeere ranṣẹ
ọja Apejuwe
Carleader 7 Inch AI BSD Ifoju Iwari Iwari Eto Abojuto Eto Atilẹyin AI Calibration jẹ apẹrẹ pẹlu awọn algoridimu giga-giga AI to ti ni ilọsiwaju ati iṣẹ ore-ọrẹ olumulo cz. Eto kamẹra AI yii n pese awọn awakọ pẹlu gbogbo oju-ọjọ, ẹlẹsẹ-konge giga ati awọn ikilọ agbara ọkọ, ni imunadoko idinku eewu ti awọn ijamba ọkọ. Eto kamẹra ibojuwo AI dara fun awọn ọkọ ayọkẹlẹ aladani, awọn ọkọ oju-omi kekere ti iṣowo ati awọn ọkọ ayọkẹlẹ pataki. Eto AI ti ọkọ oju-omi titobi ni isọpọ ti o lagbara ati ibaramu, agbara ati awọn agbara ibojuwo akoko gidi.
Awọn ẹya ara ẹrọ ọja:
|
Atẹle Specification |
|
|
Awoṣe |
CL-S791AHD-AICAM |
|
Igbimọ |
7 inch TFT LCD |
|
Imọlẹ |
600 cd/m2 |
|
TV System |
PAL/NTSC laifọwọyi swich |
|
Ipinnu |
1024(H) 600(V) |
|
Wo Igun |
U:85 / D:85, R/L:85 |
|
Iyatọ |
500:1 |
|
Iwọn Aworan |
16:9 |

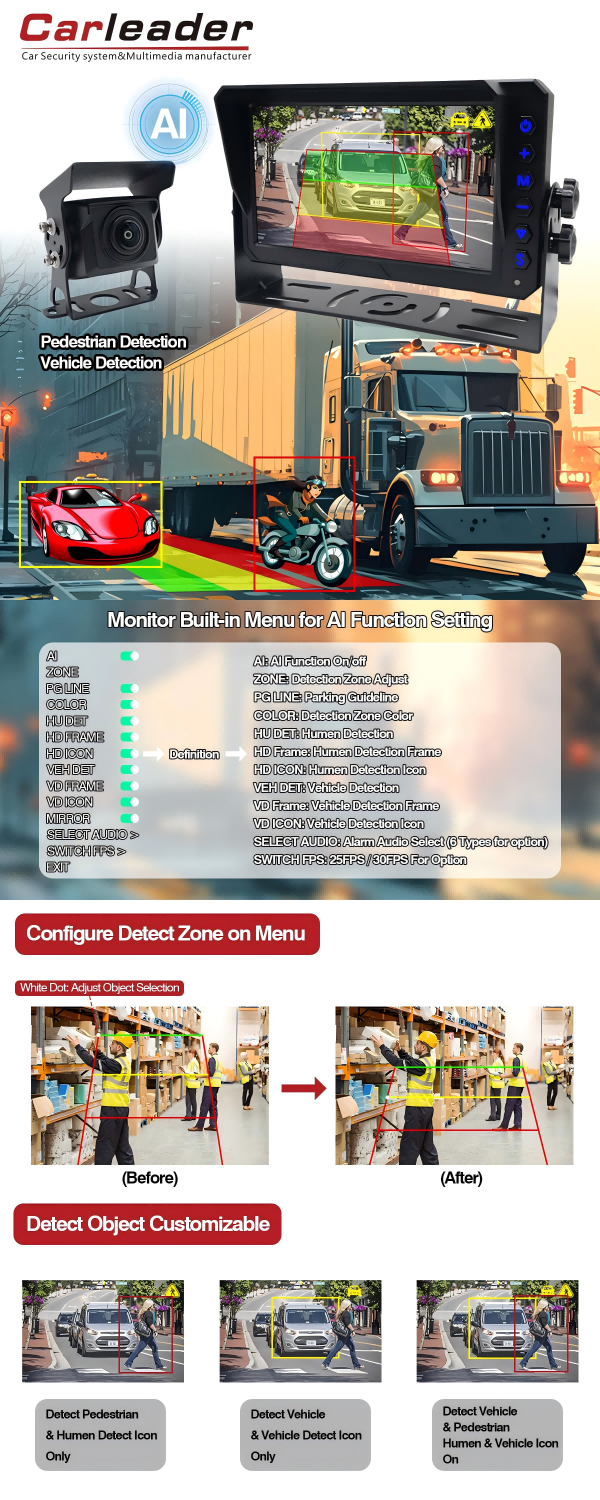

| Isọdiwọn AI |
1. Tẹ & Mu bọtini “S”, titi ti iboju yoo fi han “Iṣakoso kamẹra PA” 2. Tẹ bọtini “S” Lẹẹkansi lati tan “Kamẹra Iṣakoso” 3. Duro fun iṣẹju diẹ lẹhin ti "Kamẹra Iṣakoso" farasin, 4. tẹ "M" Bọtini lati ṣii akojọ aṣayan isọdọtun AI. |
|
Išẹ |
Itọsọna pa / idaduro idaduro / digi |
|
Iṣawọle fidio |
CVBS/720P/1080P ifihan agbara input |
|
Smart Iṣakoso |
Atẹle atilẹyin AI eto |
|
Agbara Idaabobo |
Apẹrẹ asopọ yiyipada agbara-agbara, Circuit tube aabo TVS |
|
Anti-kikọlu Design |
iyan |
|
Agbara agbara |
Nigbati 12V, ≤10W (pẹlu kamẹra) |
|

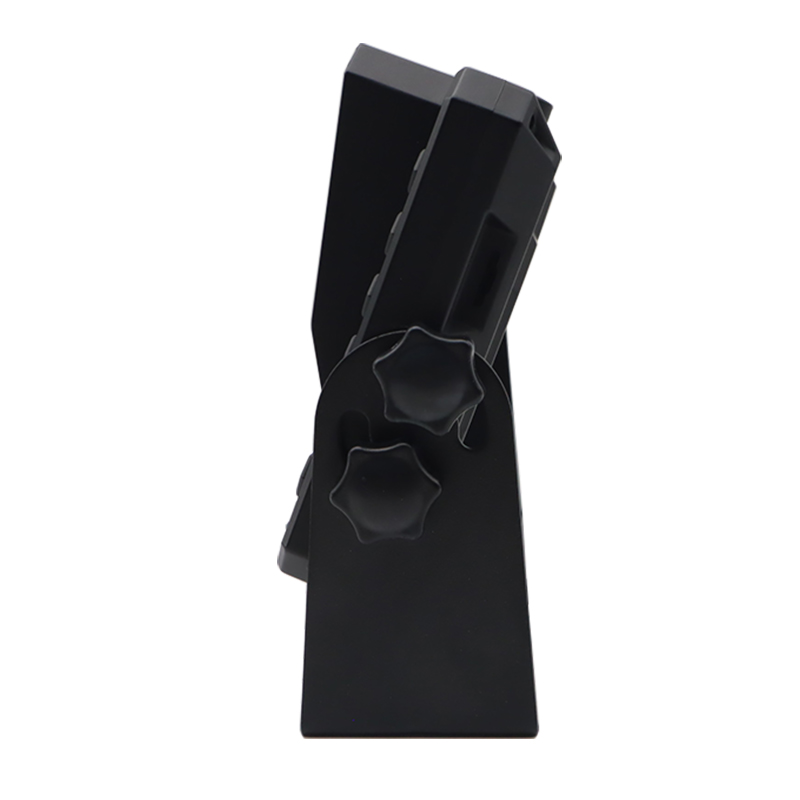

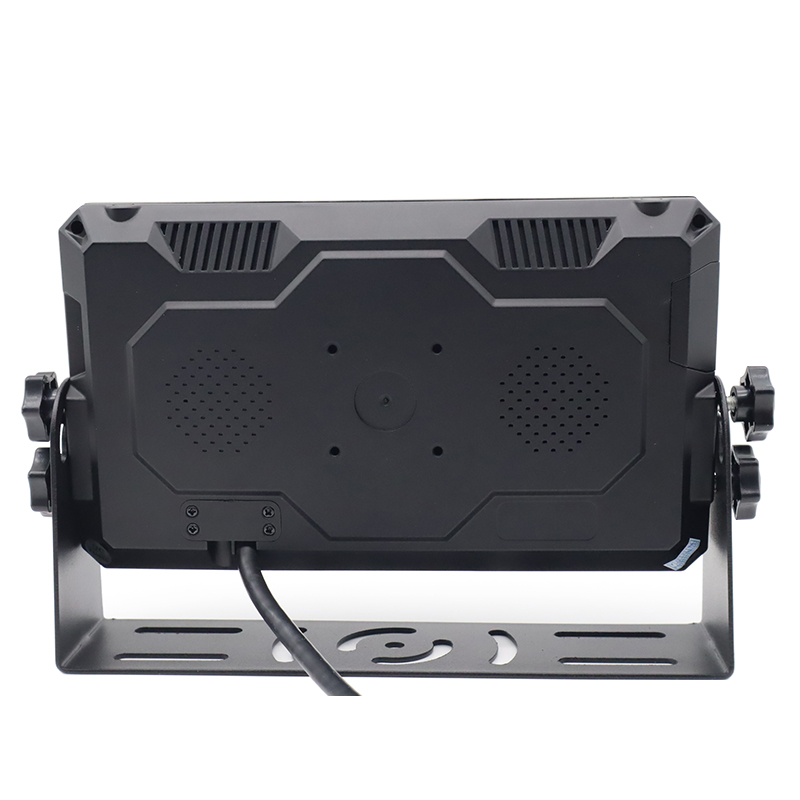

Ọna fifi sori ẹrọ |
U-sókè akọmọ ati ikele akọmọ meji-idi oniru |
|
Agbara Input |
DC 12-32V |
|
Apapọ iwuwo |
Nipa 400g |
|
Iwọn |
193mm * 112mm * 25mm |
|
Iwọn otutu nṣiṣẹ |
-20 ~ 70 ℃ |
|
Sipesifikesonu kamẹra |
|
|
Sensọ Aworan kamẹra |
AHD awọ |
|
TV System |
PAL/NTSC |
|
Ipinnu |
1280*720 (1 milionu) |
|
AI alugoridimu |
Ṣe atilẹyin fun ẹlẹsẹ & itaniji wiwa ọkọ |
|
Agbegbe wiwa |
Awọn awọ mẹta (Awọ ewe, Yellow, Pupa) agbegbe wiwa |
|
Backlight Biinu |
Aifọwọyi |
|
Iwontunws.funfun |
Aifọwọyi |
|
SNR |
≤48dB (AGC lori) |
|
GAMMA paramita |
0.45 |
|
Iṣawọle fidio |
1.0Vp-p75ohm-AHD |
|
Igun wiwo |
120° (150°aṣayan) |
|
Mabomire Ipele |
IP68 |
|
Ibi ti ina elekitiriki ti nwa |
DC 12V (iyan 24V) |
|
Agbara agbara |
2W |
|
Iwọn otutu nṣiṣẹ |
-20 ~ 70℃ (RH93% ti o pọju.) |
Gbona Tags: 7 inch AI BSD Abojuto Aami afọju Iboju Eto Atilẹyin AI Calibration, Olupese, Olupese, Ra, Ti adani, China, Olowo poku, Iye Kekere, CE, Didara, To ti ni ilọsiwaju, Titun, Ti o tọ, Didara
