Awọn solusan Wiring oriṣiriṣi meji fun Carleader AHD Starlight Dual Lens Rear View kamẹra ti o baamu fun RV Motorhome

CarleaderAHD Starlight Dual Lens Ru Kamẹra ti o baamu fun RV Motorhome, Ohun elo irinṣẹ ikọkọ AHD kamẹra wiwo ẹhin lati ọdọ Carleader, apẹrẹ lẹnsi meji gba olumulo laaye lati ni iṣẹ hihan ti o han gbangba ti oju wiwo isunmọ ati jijinna jijin. Ibugbe alloy aluminiomu  ati iwọn IP69K jẹ ki kamẹra le lagbara ati duro ni eyikeyi ipo oju ojo lile. Kamẹra yii ko baamu fun ọkọ ojuṣe eru nikan, gẹgẹbi ọkọ nla, ọkọ akero, orita, ati bẹbẹ lọ; tun dara fun ọkọ ayọkẹlẹ, bii RV ati ọkọ ayọkẹlẹ.

Ipin Ọja:

Awọn sensọ aworan: 1/2.1

Ipese agbara: DC12V (boṣewa). 24V (aṣayan)

Ipinnu(Awọn Laini TV):CVBS/720P/1080P (aṣayan)

Aworan digi & aworan ti kii ṣe digi (aṣayan)

Itanna Itanna: 1/65 (NTSC) / 1/60 (PAL) - 1/10,000

Lux: 0 LUX (Ko si LED IR)

Ìran Ìràwọ̀ Alẹ́ (Àwòrán àwọ̀)

Lẹnsi: 2.1mm

Ìpín S/N:≥50dB

Eto: PAL/NTSC iyan

Wo Igun: 90° & 135° (aiyipada)

Igun lẹnsi le ṣe atunṣe lọtọ

Ijade fidio: 1.0vp-p, 750hm

Ohun elo Ile: Aluminiomu Alloy

Awọ: Dudu (aiyipada), funfun (Aṣayan)

Iwọn IP: IP69K

Iwọn otutu ti nṣiṣẹ (Iwọn C):-20~+75(RH95% Max.)

Iwọn otutu Ibi ipamọ (Iwọn C):-30~+85(RH95% Max.)

Carleaderyoo funni ni ojutu onirin oriṣiriṣi meji fun AHD Starlight Dual Lens Rear View Camera fit Fun RV Motorhome, lati baamu iwulo onirin oriṣiriṣi:

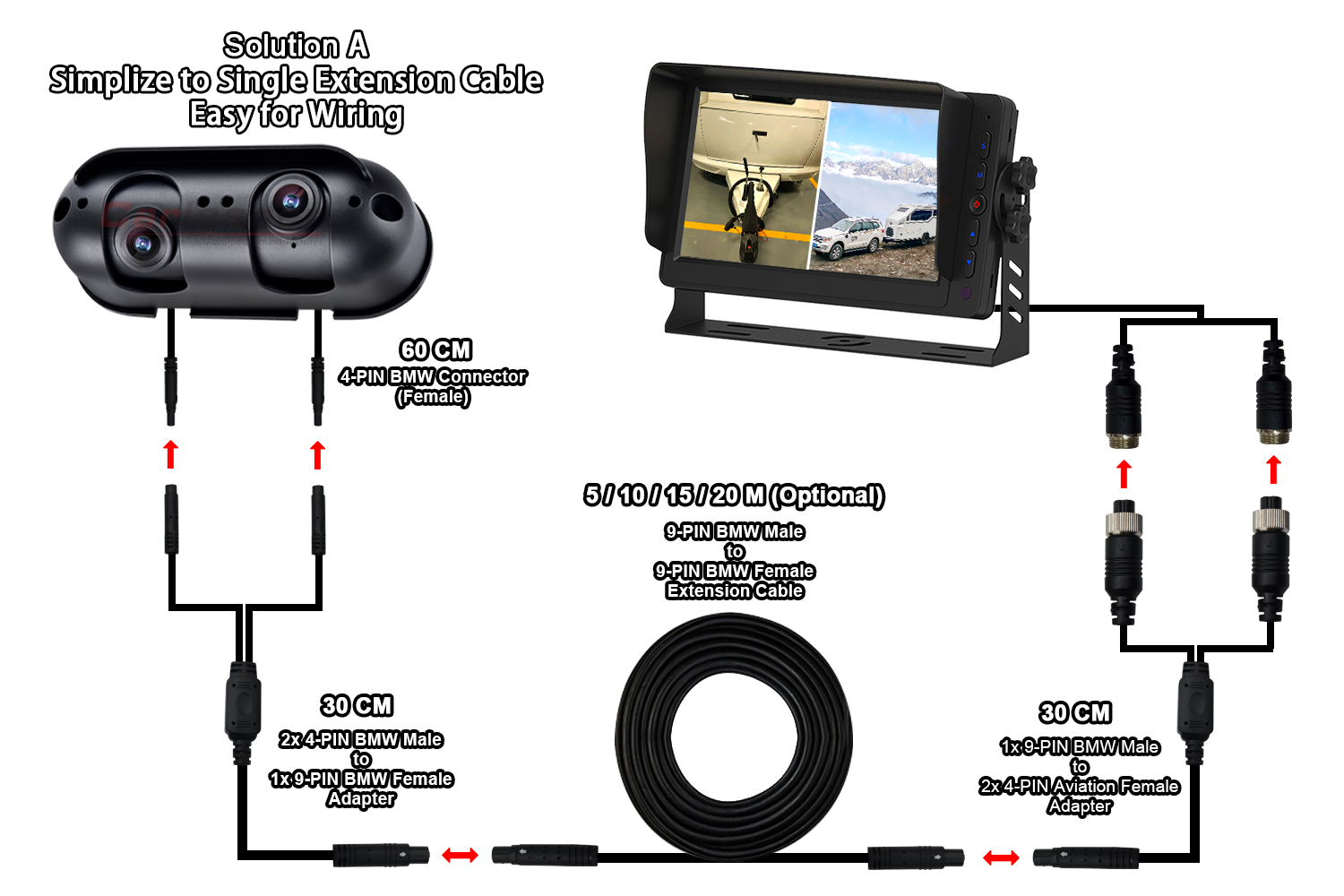

Ojutu akọkọ nikan lo okun itẹsiwaju kan (asopọ BMW 9-PIN), okun pipin 1 si 2 fun opin mejeeji lati sopọ kamẹra ati atẹle. Nitoripe ojutu yii nikan wa lori okun itẹsiwaju, eyiti o jẹ ki ilana fifi sori ẹrọ rọrun ati irọrun diẹ sii.

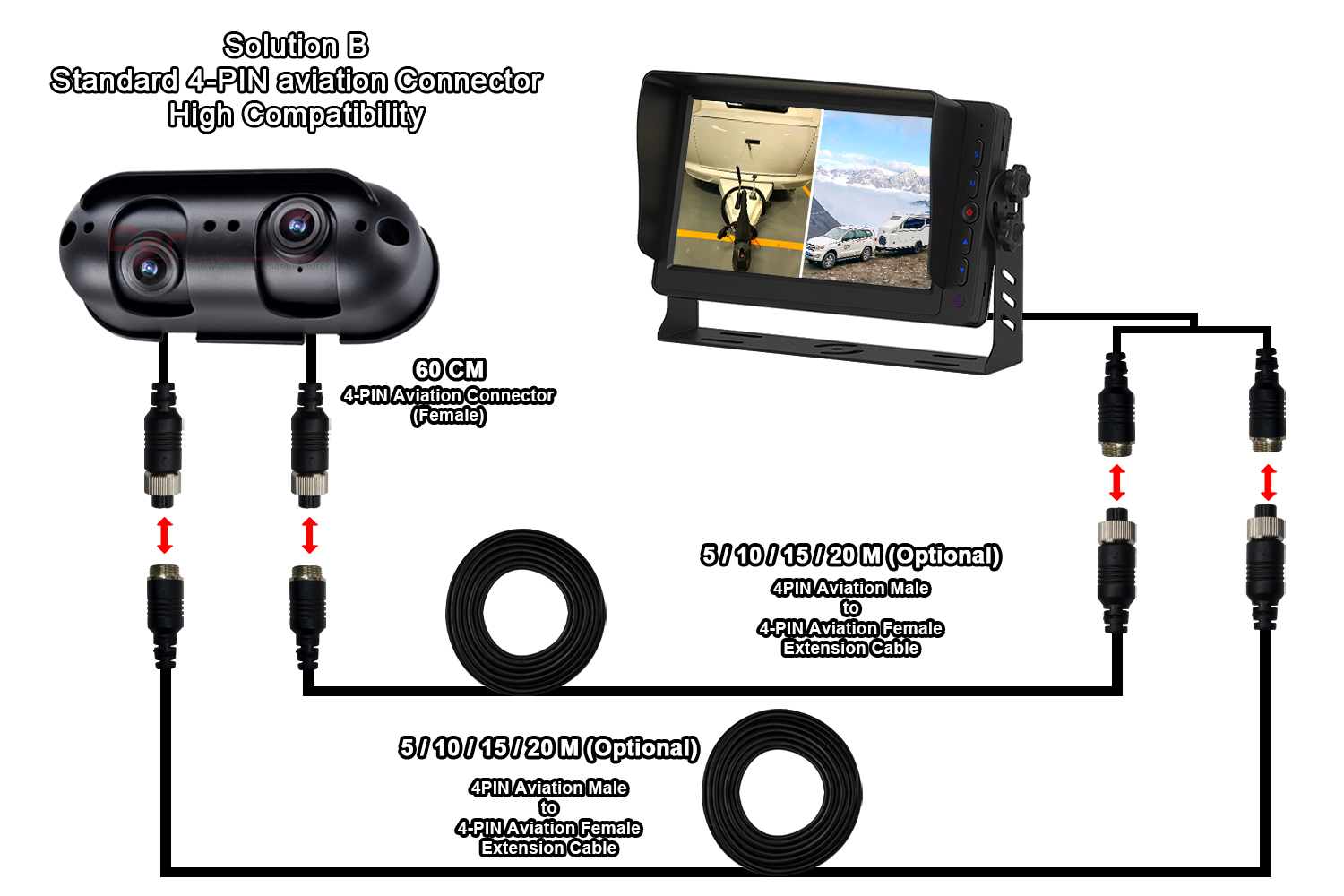

Ojutu keji yoo awọn kebulu itẹsiwaju meji, ṣugbọn asọye kamẹra jẹ asopo oju-ofurufu 4-PIN boṣewa, niwọn igba ti okun itẹsiwaju rẹ jẹ asopo ọkọ ofurufu 4-PIN boṣewa, yoo jẹ ibaramu fun okun itẹsiwaju rẹ.

CarleaderAHD Starlight Dual Lens Ru Kamẹra ti o baamu fun RV Motorhome, gbe aabo ọkọ ati hihan pẹlu awọn lẹnsi ipinnu giga rẹ, kamẹra yii tun ṣe atilẹyin iṣẹ WDR lati mu didara aworan kamẹra dara si. Pẹlu awọn wọnyi meji onirin ojutu fun aṣayan, ọkan jẹ rorun fun onirin, ati awọn miiran ọkan ká ga ibamu. ṣiṣẹ pipe pẹlu olumulo pẹlu iwulo onirin oriṣiriṣi.
